Alta Waterproof Decks
Project gallery

Real projects. Drag to compare.

Every Alta project comes with a before/after comparison. Drag the slider on any project to see the transformation.

01 — Elevated Waterproof Deck Restoration

Restored elevated residential deck with waterproofing system over living space
Deteriorated elevated deck with water damage before restoration
Before
After

Click and drag to compare

01Waterproofing•Portland, OR

Elevated Waterproof Deck Restoration

Severely deteriorated elevated deck over a living space — water intrusion was damaging the room below. Full structural assessment, framing reinforcement, and a complete Westcoat/TREMCO waterproofing system restored the deck to better-than-new condition.

Materials used

  • •Westcoat ALX waterproofing membrane
  • •TREMCO Vulkem traffic-grade topcoat
  • •Pressure-treated framing reinforcement
  • •Cedar plank finish decking
  • •Code-compliant flashing at terminations

02 — Cedar Deck & Cable Railing Replacement

Newly built cedar deck with stainless steel cable railings
Old rotting cedar deck with broken cable railings before replacement
Before
After

Click and drag to compare

02Retrofit•Beaverton, OR

Cedar Deck & Cable Railing Replacement

Old cedar deck with failed structure and rotted railing. Complete teardown, new pressure-treated framing, premium cedar decking, and a modern stainless cable railing system.

Materials used

  • •Premium cedar deck boards
  • •Stainless steel cable railing system
  • •Hot-dipped galvanized post anchors
  • •Hidden fastener system
  • •Weather-rated exterior stain

03 — Concrete Patio Waterproofing

Modern concrete patio with decorative waterproof coating
Cracked stained concrete patio with water damage before treatment
Before
After

Click and drag to compare

03Waterproofing•Lake Oswego, OR

Concrete Patio Waterproofing

Hairline cracks and water pooling on a lakefront concrete patio. After crack repair, we applied a full Westcoat ALX system with decorative quartz for slip resistance and visual appeal.

Materials used

  • •Concrete crack repair mortar
  • •Westcoat ALX base coat
  • •Decorative quartz aggregate broadcast
  • •Polyaspartic topcoat (UV stable)
  • •Anti-slip texture additive

04 — Fiber Cement Siding Replacement

Contemporary home with newly installed fiber cement lap siding
Damaged and faded fiber cement siding before replacement
Before
After

Click and drag to compare

04Siding•West Linn, OR

Fiber Cement Siding Replacement

Twenty-year-old siding failing at the laps and around penetrations. Removed existing, inspected sheathing, installed new weather barrier, and finished with James Hardie lap siding and trim.

Materials used

  • •James Hardie fiber cement lap siding
  • •Tyvek HomeWrap weather barrier
  • •HardieTrim fiber cement boards
  • •Custom-bent aluminum flashing
  • •Sherwin-Williams Duration paint

05 — New Deck Construction

New deck under construction in framing stage

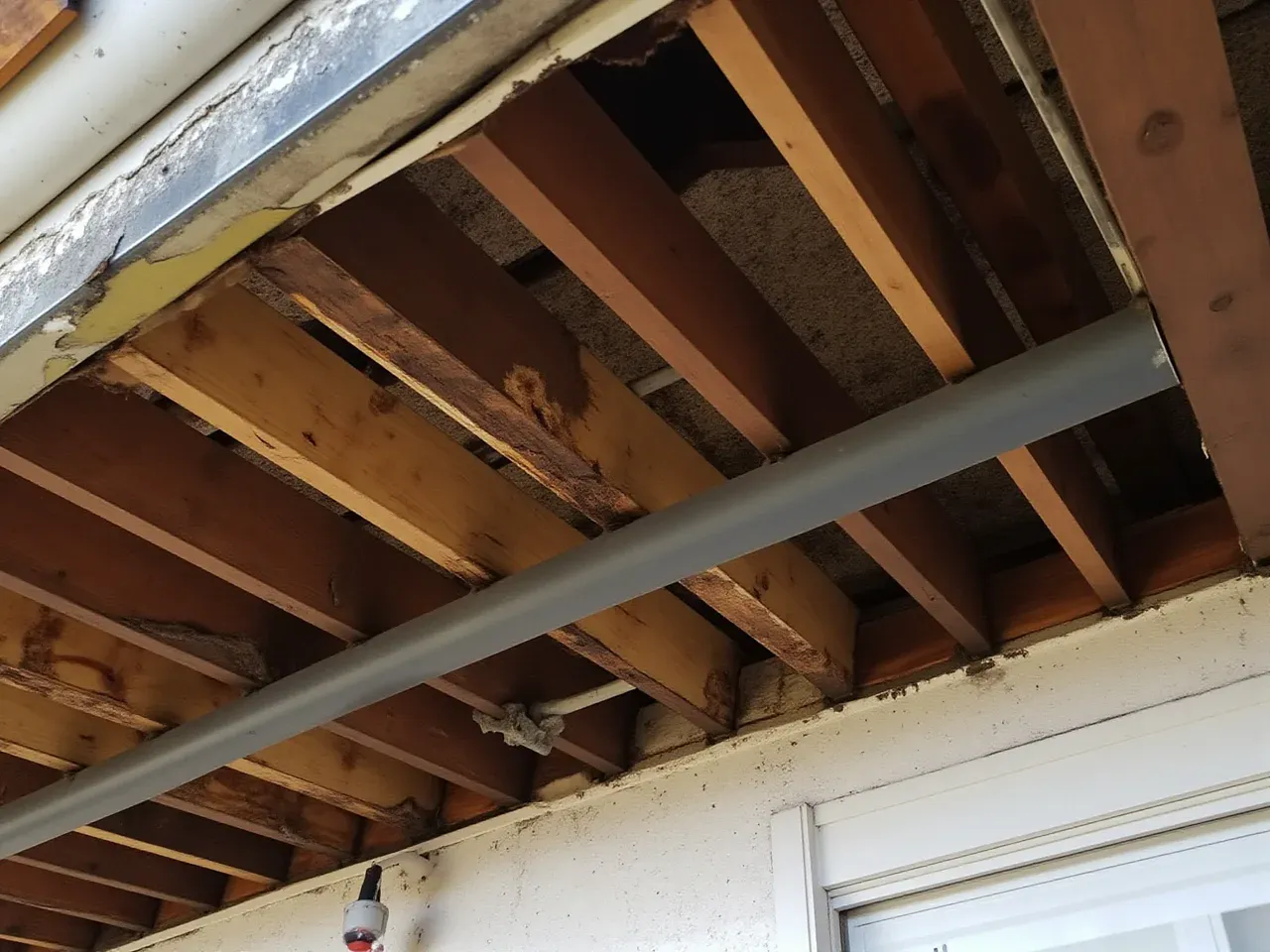

Old unsafe deck framing exposed showing water damage
Before
After

Click and drag to compare

05New Build•Gladstone, OR

New Deck Construction

From a tear-out of failed structure to a fully rebuilt, code-compliant deck with integrated waterproofing. Engineered plans, permits pulled, crew-led from start to finish.

Materials used

  • •Pressure-treated 2x10 joists
  • •Simpson Strong-Tie connectors
  • •Galvanized post bases
  • •Westcoat ALX waterproofing
  • •Cedar top decking

06 — Multi-Family Waterproofing

Multi-family residential building with new waterproofed balcony decks

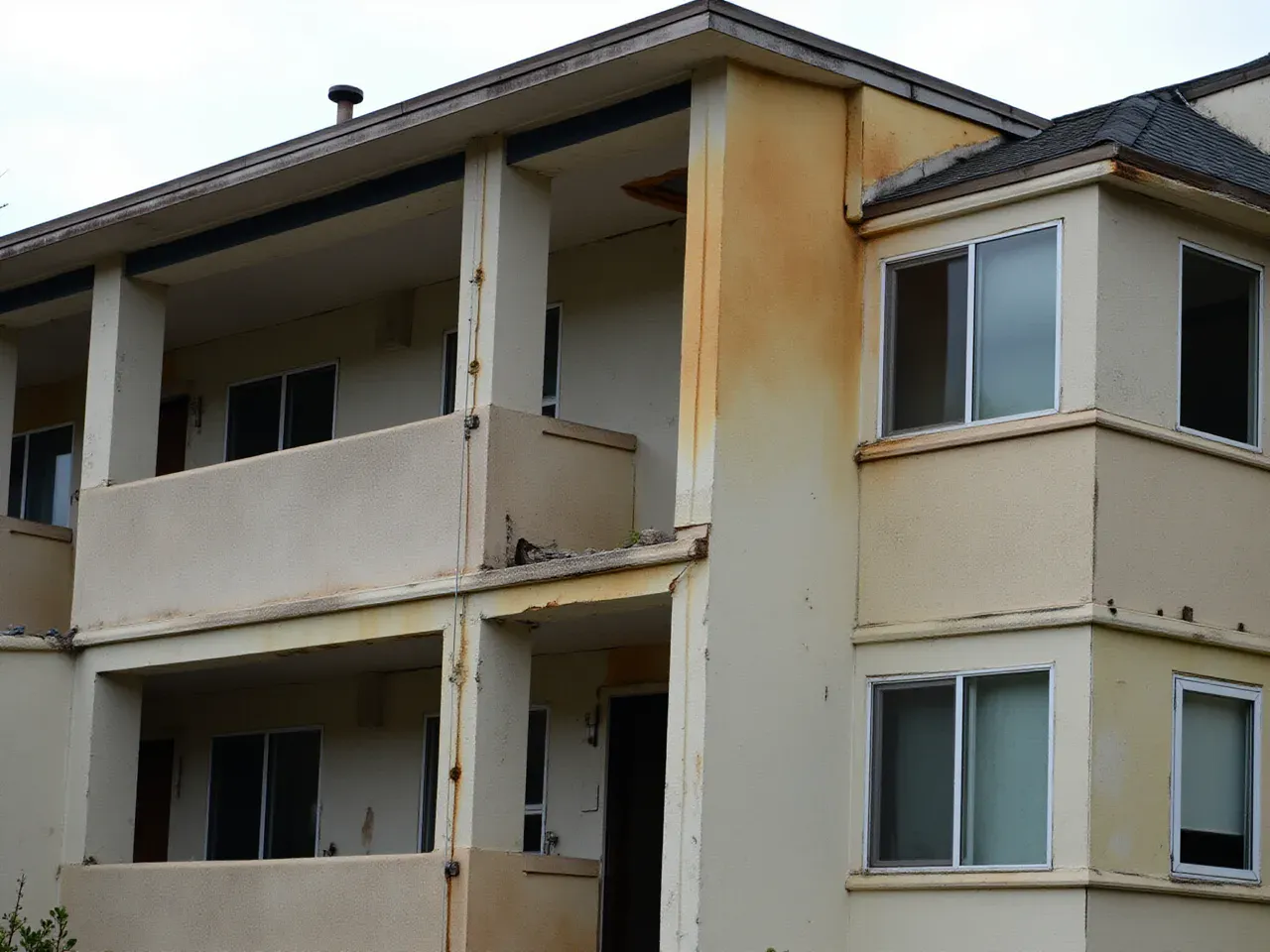

Deteriorated multi-family residential building balconies before restoration
Before
After

Click and drag to compare

06Commercial•Hillsboro, OR

Multi-Family Waterproofing

HOA-managed multi-family complex with chronic balcony leaks into units below. Phased installation with TREMCO traffic-grade membranes and tenant coordination.

Materials used

  • •TREMCO traffic-bearing membrane
  • •Pedestal paver system (subsurface)
  • •Metal edge termination profiles
  • •Drainage mats and protection boards
  • •Code-compliant fire ratings

07 — Craftsman Cedar Siding Restoration

Recently sided Pacific Northwest craftsman home with fresh cedar lap siding

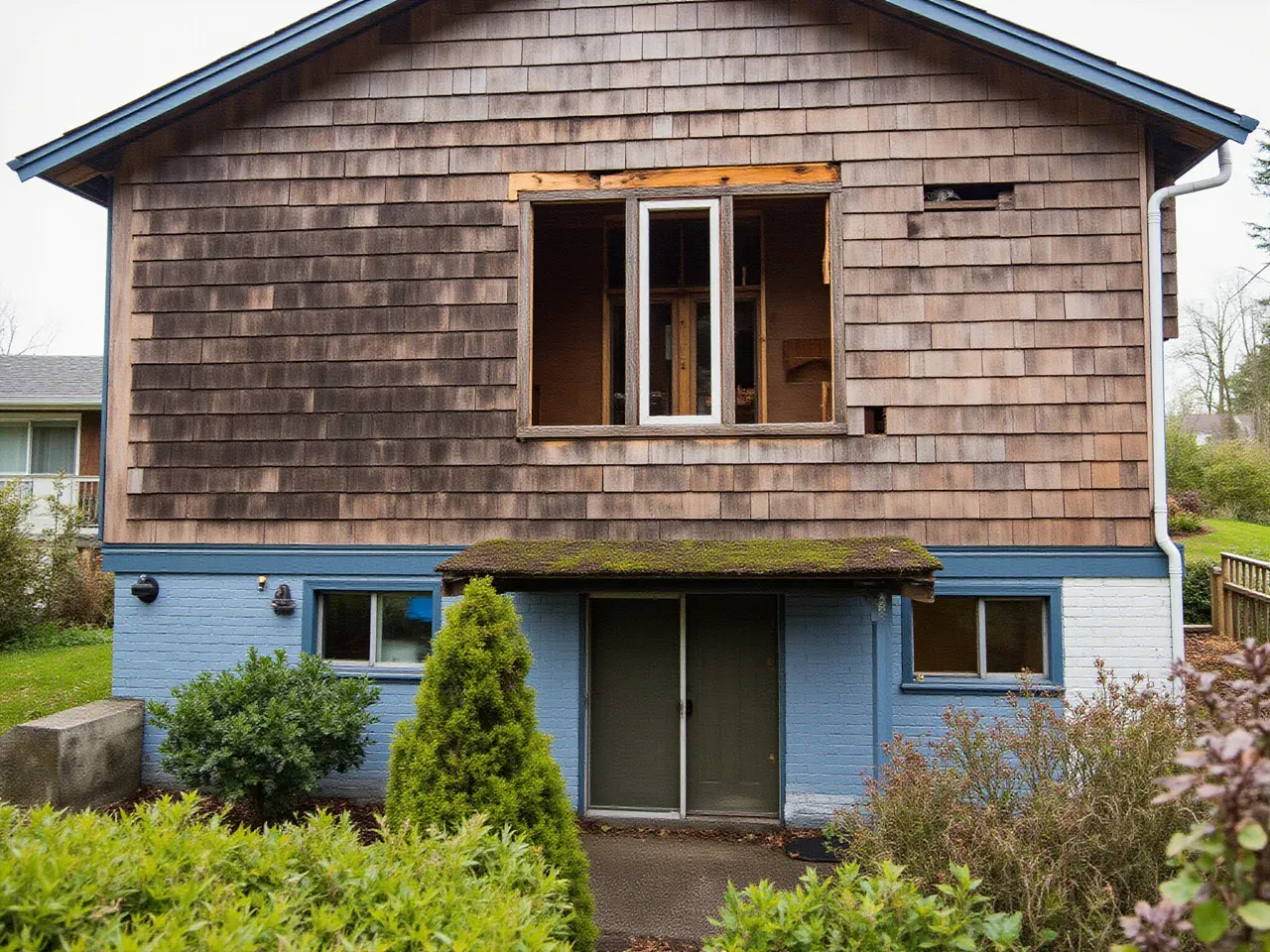

Old severely damaged cedar lap siding on craftsman home before restoration
Before
After

Click and drag to compare

07Siding•Sherwood, OR

Craftsman Cedar Siding Restoration

Historic craftsman with failing cedar siding. Removed all old siding, repaired sheathing, installed proper WRB and flashing, then finished with clear-grade cedar and a penetrating stain.

Materials used

  • •Clear-grade cedar lap siding
  • •Stainless steel ring-shank nails
  • •Benjamin Moore Arborcoat stain
  • •Custom cedar corner boards
  • •Proper kick-out flashing at rooflines

08 — Deck Retrofit & Waterproofing

Older residential deck after waterproofing retrofit

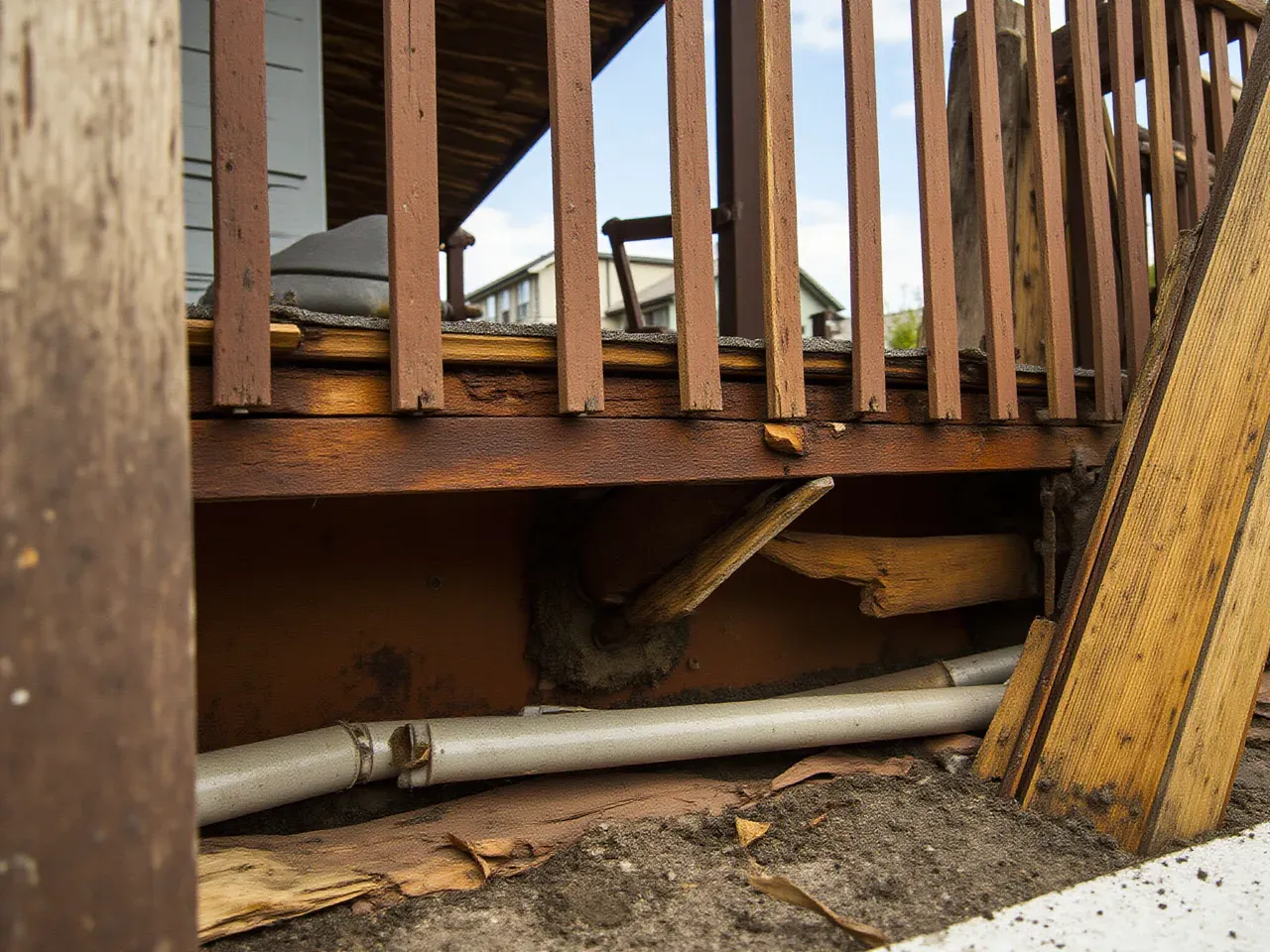

Old failing deck with major structural issues before retrofit
Before
After

Click and drag to compare

08Retrofit•Wilsonville, OR

Deck Retrofit & Waterproofing

An older deck with sound framing but failed waterproofing. Retrofit approach saved the homeowner thousands vs full replacement — added structural reinforcement, new waterproofing, and code-compliant railings.

Materials used

  • •Joist reinforcement brackets
  • •Westcoat ALX retrofit system
  • •New flashing at wall transitions
  • •Code-compliant railing upgrade
  • •Slip-resistant top coat

09 — Hillside Home Waterproofing

Hillside Pacific Northwest home with finished waterproofed deck and valley view

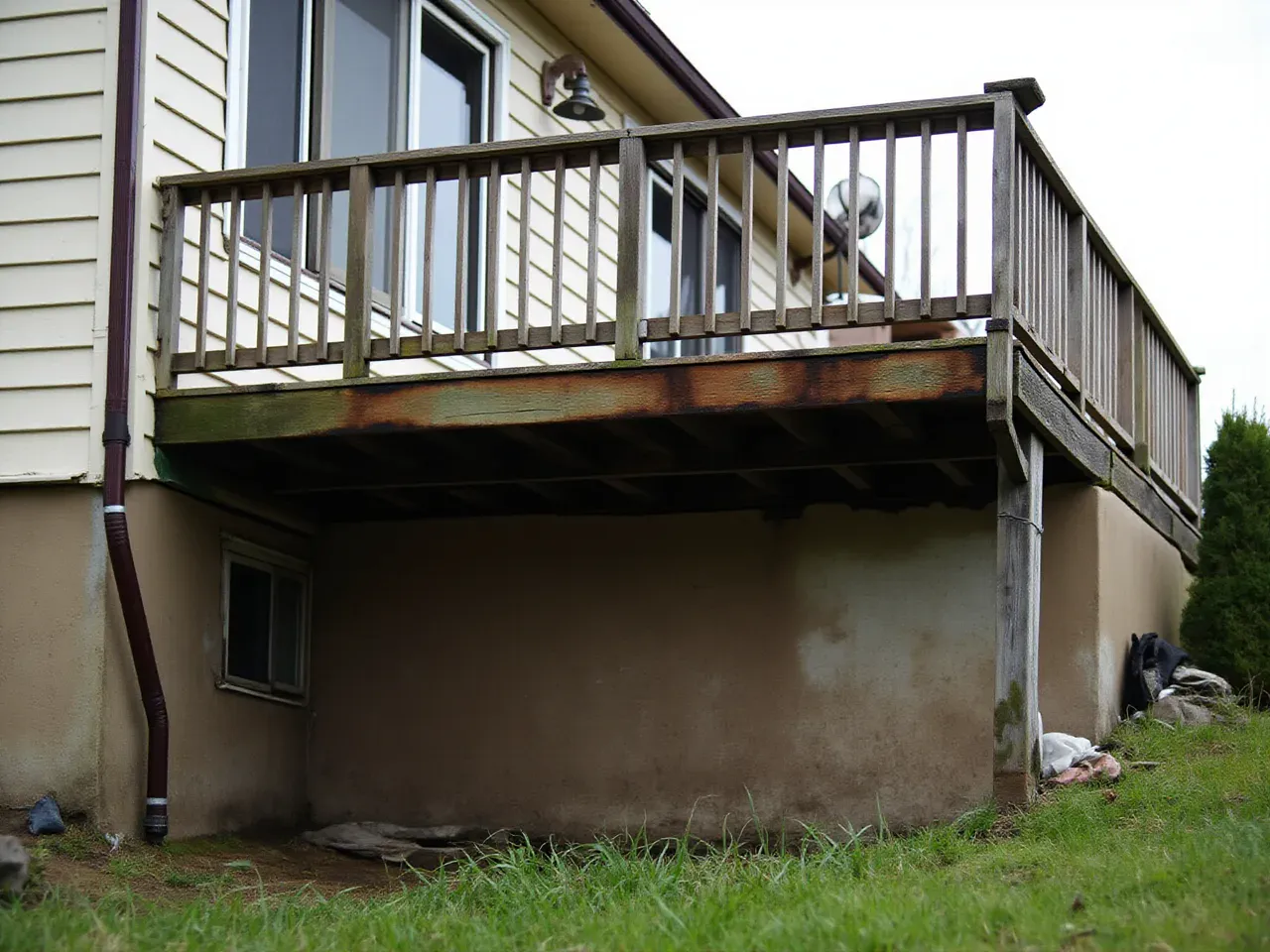

Old hillside home deck with severe water damage before restoration
Before
After

Click and drag to compare

09Waterproofing•Fairview, OR

Hillside Home Waterproofing

Hillside home with failed deck-to-wall flashing causing water damage to siding below. Full tear-out, proper drainage integration, and a complete Westcoat system — finished with cedar and modern cable rails.

Materials used

  • •Engineered drainage mat
  • •Westcoat ALX full system
  • •Custom metal edge terminations
  • •Cedar plank finish
  • •Cable railing system
